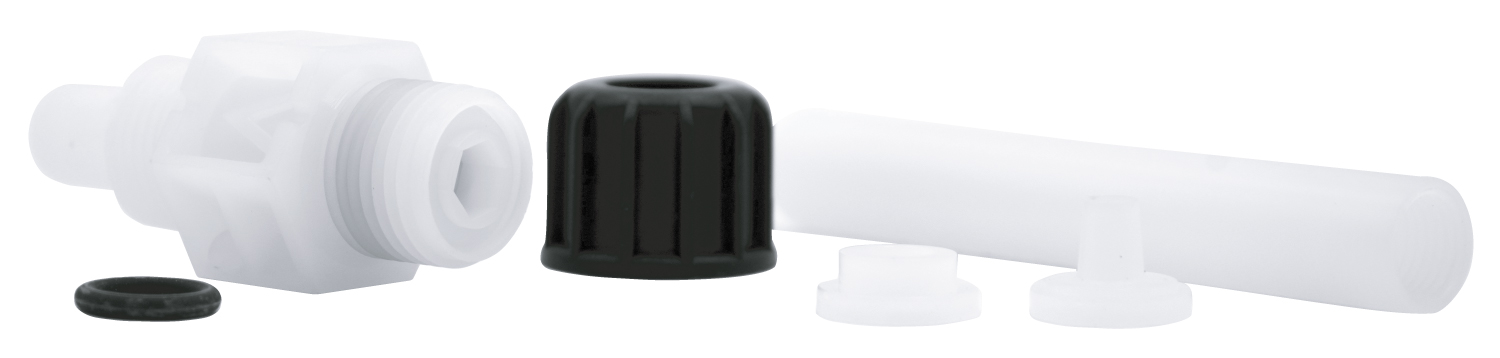

emec LOTUS MINI injection valve 1/2"

Product number: 896764

Product information "emec LOTUS MINI injection valve 1/2""

This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus.

emec LOTUS MINI injection valve 1/2" - 6X8 PVDF+FP+CE + extension 10CM

Dimensions

Height 13 cm
Length 18 cm
Width 13 cm

Weight

Weight 300 g

Other attributes

Country of origin IT
Customs tariff number 84139100
Technical data
Body: PVDF
O-Rings and Lipseal: FKM B (Viton) max.
Flow rate: 120 l/h
Immersion depth: max. 55 mm
Operating range: max. 16 bar/25 °C (3 bar/50 °C)
Process connection: 1" Hose connection: 8x10 mm
