Configurator: Water treatment plant outpatient clinics

Product number: AMBULANT

Product information "Configurator: Water treatment plant outpatient clinics"

Note: The system shown, consisting of two cabinets, is the fully equipped version of our system. The basic price is therefore supplemented by the selected options.

The modular water treatment system was developed especially for the outpatient care sector. While retaining the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the quantities required in different outpatient centres, as well as to the initial water quality including any treatment steps on the part of the suppliers. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the treatment processes of the supplier.

Principle
Due to its modular design, the water treatment system can be adapted to the different conditions in the outpatient care sector. This includes different degrees of water hardness, quantities required in outpatient centres, the initial water quality and the treatment steps. Optimal water treatment is relevant for reliable availability of instruments for operations. In addition, the protection of the instruments and the equipment technology goes hand in hand with this. Furthermore, any damage to the instruments or equipment is always directly related to the issue of patient safety. For the treatment of the water, a pre-filtration, a softening system, a reverse osmosis system with a 100-litre permeate tank including a surge tank and sterile filter as well as a permanent conductivity and silicate monitoring by a Testomat® 808 SiO2 at the blending bed and a recirculation system with integrated UV system and pyrogen filter are used.

Waste water discharge via brine lifting unit
As an optional component, the treatment plant can be extended by an integrated wastewater lifting unit, which conveys the produced and collected wastewater into the sewage system. The main wastewater volume flows are the wastewater from the regeneration of the softening plant and the concentrate from the reverse osmosis. The lifting unit also collects the discontinuously occurring wastewater flows from the silicate meter, the system separator and the rinsing water that occurs when the input filters (especially activated carbon filters) are changed.

Shut-off via system separator
The installation of a system separator is mandatory to protect the drinking water network from contamination by treated water or changes in the natural composition of the drinking water fed in due to the technical treatment of the latter. The unit has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.

Rittal enclosure systems
The system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems, offering a wide range of solutions for the secure storage and protection of electronic components and equipment. Rittal enclosure systems are available in a range of sizes, designs and configurations, and are suitable for various application areas such as IT infrastructure, industrial automation, power distribution and telecommunications.
Rittal's enclosure systems are characterised by high quality, functionality and flexibility. Rittal cabinets are made from high-quality materials and offer a robust design that ensures reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibration and other environmental influences. Rittal enclosure systems are modular, which means they can be adapted to specific requirements and available space. They offer a wide range of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. Rittal's enclosure systems offer various security features such as lockable doors, security locks and access control systems to prevent unauthorised access to equipment and ensure data security. Only a minimum floor space of 1.60m x 1m is required to install the HeylNeomeris modular water treatment system. It consists of 2 cabinets, each 80cm wide and 60cm deep. It is possible to work with double doors and thus, due to the depth of 60 cm and a double door with a dimension of 40 cm, an area of 1 m in the depth of the room results.
The cabinets used are made of sturdy sheet steel modules and have a high-quality surface coating.

Standard equipment of the system

Testomat® 808 SiO2 Silicate Measuring Device
A Testomat®808 SiO2 silicate is used for permanent silicate monitoring. The Testomat®808 SiO2 is a measuring instrument that is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. Here, the silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue colour whose intensity is proportional to the silicate content. The measuring device records the colour intensity by means of an optical sensor and converts it into a measured value that represents the silicate content of the water. The Testomat®808 SiO2 is housed in a compact casing that includes a user interface, display and control elements as well as connections for water samples and drainage.
The use of the Testomat 808®SiO2 ensures reliable compliance with the limit value for SiO2 of 0.4 mg/l recommended by the DGSV and AKI. In the event of a limit value being exceeded, it is possible to transmit this to the optionally available NeoTecMaster® or to directly activate an optical warning element. Continuous monitoring of the silicate content is necessary to effectively prevent any deposits and subsequent damage to the device technology and instruments.
By using the Testomat®808 SiO2, companies can continuously monitor the silicate content and take appropriate measures to prevent deposits if necessary.

Optional components of the system

UV Disinfection Mini
UV disinfection is used in water treatment to inactivate the water from any microorganisms such as bacteria, viruses and protozoa. UV stands for ultraviolet radiation, which is produced by special UV lamps. The principle of UV disinfection is based on inactivating the DNA or RNA of the microorganisms, preventing them from reproducing and causing disease. UV disinfection is relevant because UV radiation is effective against a wide range of microorganisms, including bacteria, viruses and protozoa such as Giardia and Cryptosporidium. A high inactivation rate can be achieved and most pathogenic organisms in the water can be killed. Unlike other disinfection methods such as chlorination or ozonation, UV disinfection does not require the addition of chemicals to the water. It produces no unwanted by-products and does not alter the taste or smell of the water. UV disinfection is a reliable method of killing microorganisms. As long as the UV lamp is properly maintained, the effectiveness of the disinfection remains constant. Since no chemicals are used in UV disinfection, there are no harmful residues in the water or the environment. It is an environmentally friendly disinfection method that reduces the ecological footprint of water treatment. It is important to note that UV disinfection is an effective method of killing microorganisms but is not used to remove pollutants, particles or chemical contaminants in the water.
The optional UV system is integrated into the plant's continuously operating recirculation system.

Pyrogen filter
A pyrogen filter is a special type of filter used in water treatment to remove pyrogens from water. Pyrogens are substances that can cause an immunological reaction in the body, especially an increase in body temperature. They are usually endotoxins released by bacteria such as Escherichia coli (E. coli). The pyrogen filter consists of a filter element that has a very fine pore size, typically in the range of 0.1 to 0.2 microns. This allows the filter to effectively retain particles and microorganisms, including pyrogenic bacteria that may be present in the water. In the modular water treatment system, the pyrogen filter is used after other pre-treatment stages such as filtration and disinfection.
After the water has been cleaned of particles and microorganisms, it is passed through the pyrogen filter to remove possible pyrogens. Pyrogen filters are particularly important in industries where the absence of pyrogens in the water is crucial, for example in the ambulatory care sector to ensure optimal quality of instrumentation for surgery. Overall, pyrogen filters play an important role in water treatment to ensure the quality and purity of water and to minimise potential exposure to pyrogenic substances.
The optional pyrogen filter is located directly behind the UV unit and can thus also be integrated into the unit's continuously operating recirculation system.

Lifting system
The lifting system is used for the reliable discharge of the wastewater volumes from the individual process steps. The main volume flows are the wastewater from the regeneration of the softening plant and the concentrate from the reverse osmosis. The lifting unit also collects the discontinuously occurring wastewater flows from the silicate meter, the system separator and the rinsing water that occurs when the input filters (especially activated carbon filters) are changed.
The use of a lifting unit is recommended if the wastewater pipes cannot be connected to a ground-level wastewater connection.

NeoTecMaster® 5 inch with housing
Data acquisition as well as its visualisation and processing are only some of the relevant topics in the environment of modern water treatment. The networking of different measuring systems and their integration into the process automation is an elementary component. The NeoTecMaster® was developed specifically for this task and is a multi-parameter system that is open to all manufacturers.

Data recording and visualisation of the NeoTecMaster
The visualisation of the multicontroller is done via trend graphs. All set parameters can be selected and deselected. All recorded data is saved on a USB stick and can also be accessed online within the company network. You can monitor and visualise up to 8 parameters via the shift key.
The NeoTecMaster is available with a 5 -inch screen and additional IP 66 protection class housing.
The NeoTecMaster® Multicontroller concept is a basic building block for every water treatment system, also for systems in outpatient clinics.

Viewing window

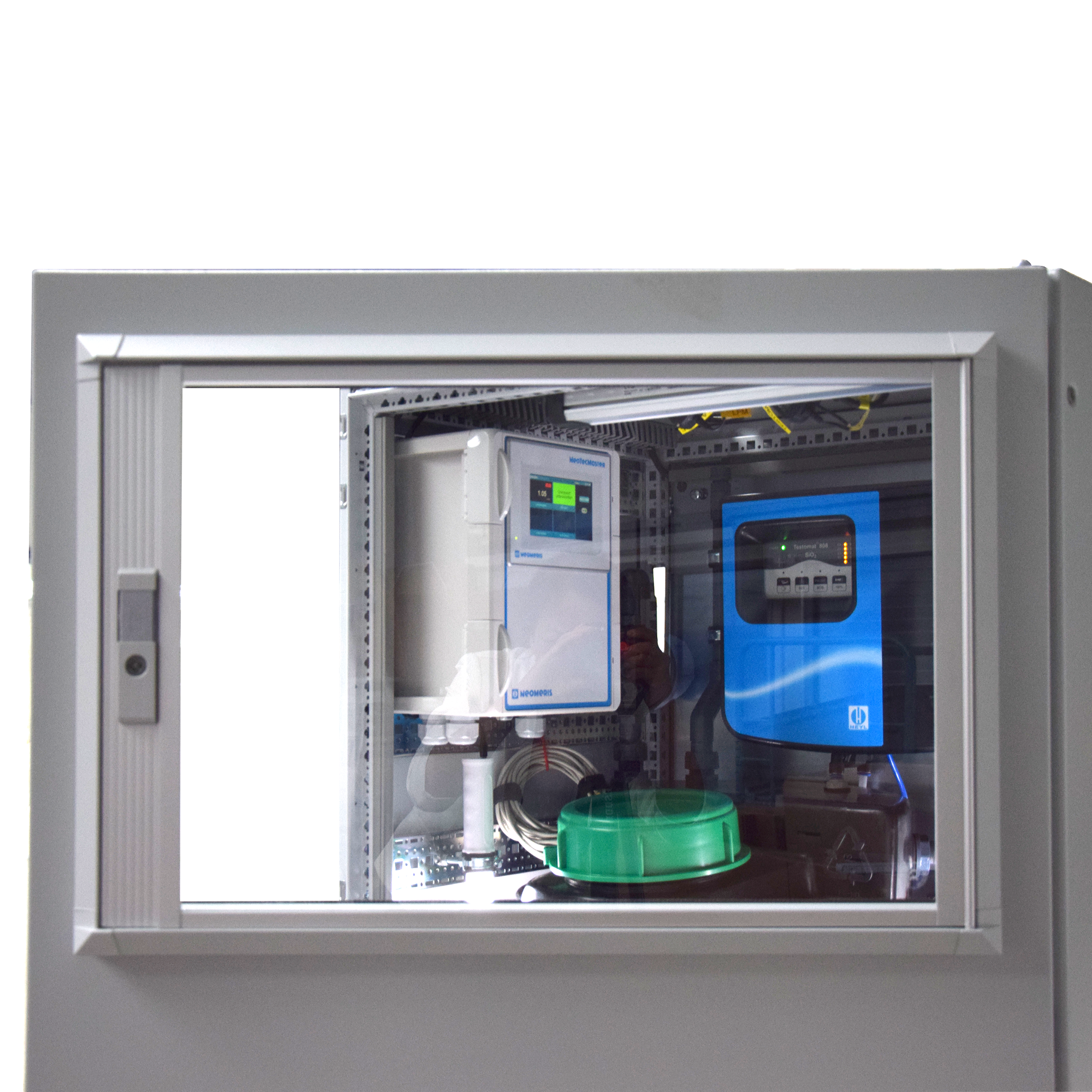

Rittal enclosures are fitted with viewing windows, which provide an overview of the measurement technology. The use of viewing windows in Rittal enclosure systems has several advantages. They enable visual inspection of the equipment located in the enclosure without the need to open the enclosure. This facilitates monitoring, maintenance and troubleshooting of components without compromising enclosure integrity. Viewing windows are usually made of a transparent material such as glass.
Notes: Viewing windows in Rittal enclosures are only available for single-leaf doors. When selecting this option, please note that the required minimum room depth increases from 100 cm to 140 cm.

Lighting
Furthermore, interior lighting with RGB colour tones is optionally available for this design variant. These can be placed independently depending on the equipment of the cabinet systems. Please note that this option is only available for cabinets with a viewing window.

Aqua-Stop (solenoid valve shut-off)
An Aqua-Stop is a safety mechanism used in water supply systems to stop or restrict the flow of water when a fault or leak occurs. It is usually an automatic closing mechanism that closes the water supply valve to prevent major water damage.
A solenoid valve is a type of shut-off valve controlled by the use of an electromagnetic field. In water treatment, a solenoid valve is used to shut off or control the flow of water. The solenoid valve consists of an electromagnetic coil system and a valve mechanism. By applying an electrical voltage to the coil, a magnetic field is generated which influences the valve mechanism. Depending on the application, the solenoid valve can be opened or closed to allow or block the flow of water. In combination, additional safety and control over the water flow can be provided.
The Aqua-Stop is located directly as the first element behind the main water connection of the system. The associated solenoid valve is coupled with two sensors, one of which continuously monitors the floor pans of both cabinet systems. The floor pans are an integral part of the cabinet systems.

Collecting tray
The floor pans are an optional part of the cabinet systems.

Technical specifications
Testomat® 808 SiO2 (silicate measuring device)
 Measuring range:  Silicon dioxide SiO2: 0.3 - 1.2 ppm

 Mains connection:

 depending on unit   version

 24V / 115V / 230V, 50 – 60 Hz
 Device protection:  230 – 240 V: T0,1 A; 115 V: T0,2 A; 24 V: T0,8 A
 Grid protection for
 consumers:
 max. 4 A (N , L)
 Power consumption:  max. 16 VA, without external load
 Protection class:  I
 Protection type:  IP54
 Conformity:  EN 61000-6-2, EN 61000-6-4, EN 61010-1
 Ambient temperature:  10 – 40 °C
 Current interface:  Output of defined values (5, 8, 11, 14, 17,
 20 mA) for output of status and error messages,
 max. load 500 Ohm
 Contact load
 Relay:
 230V / 4A AC resistive load
 Weight:  4350 g
Range of application:  Ultrapure water monitoring for AEMPs and
 outpatient centres



Lifting system
 Pump type:  "Sealless immersion pump made of Valox plastic (pump casing,
 impeller and cover) or motor shaft in stainless steel AISI 316;
 2 pole induction motor 50 Hz (2800 rpm), voltage 230 V,
 according to EN 60034, protection class IP55, insulation class F."
 Materials:  Housing, cover and impeller made of PBT
 Container capacity:  13l Tank volume
 Connections:  Regeneration: 8 mm (optionally 10 mm and 12 mm as accessories   in the scope of delivery) via free inlet (system separation)
 Overflow: 13 mm (optionally 20 mm as accessory in scope of   delivery)
 Pressure connection: ¾“ (20 mm)
 max. delivery head:  5m WS
 max. delivery rate:  70 l/min
 Engine power:   0.09 kW (P2)
 Power supply:   230 V, 50 Hz
 Nominal current:   0.7 A
 Level control:   Membrane switch with time relay
 Connection cable:   Length 3m with earthing contact plug
 Pressure connection:   3/4" hose nozzle incl. check valve
 Pumped medium:   Brine + cold water, salt content approx. 27%.
 max. grain size:   Solids up to 4mm
 max. temperature:   40°C
 Dimensions (WxHxD):   450 x 540 x 230mm
 Total weight:   approx. 5kg



Viewing window
 Material:  Extruded aluminium profile with zinc
 die-cast corner pieces and single-pane
 safety glass
 Surface:  Base frame:powder-coated RAL 7035
 Hinge and locking profile: anodised, natural
 Disc advantage:  Made of toughened safety glass:high resistance against solvents   and scratches, antistatic, reduced risk of injury in case of breakage   Double- bit lock insert as standard, exchangeable against 27 mm   lock inserts, version A and/or against locking system Ergoform-S   (except H_270mm)
 Hinge with 180 ° - opening angle, easy to hook in
 Frame advantage:  Easy to screw onto the door due to adapted dimensions (door   frame can be used drilling template). Easy to adjust in height.   Stabilises the door cut-out. Conceals the cut edge. No dirt on the   seal, the pane is secured against levering out, no dirt falls down   when opening and no liquid runs behind the window frame profile   in the height 30mm or 60mm
 Protection type:  IP54
 Dimensions (WxHxD):  700 x 470 x 47mm
 Visible surface:  563 x 398mm
 Weight:  5.75 kg
 Copper content:  0
