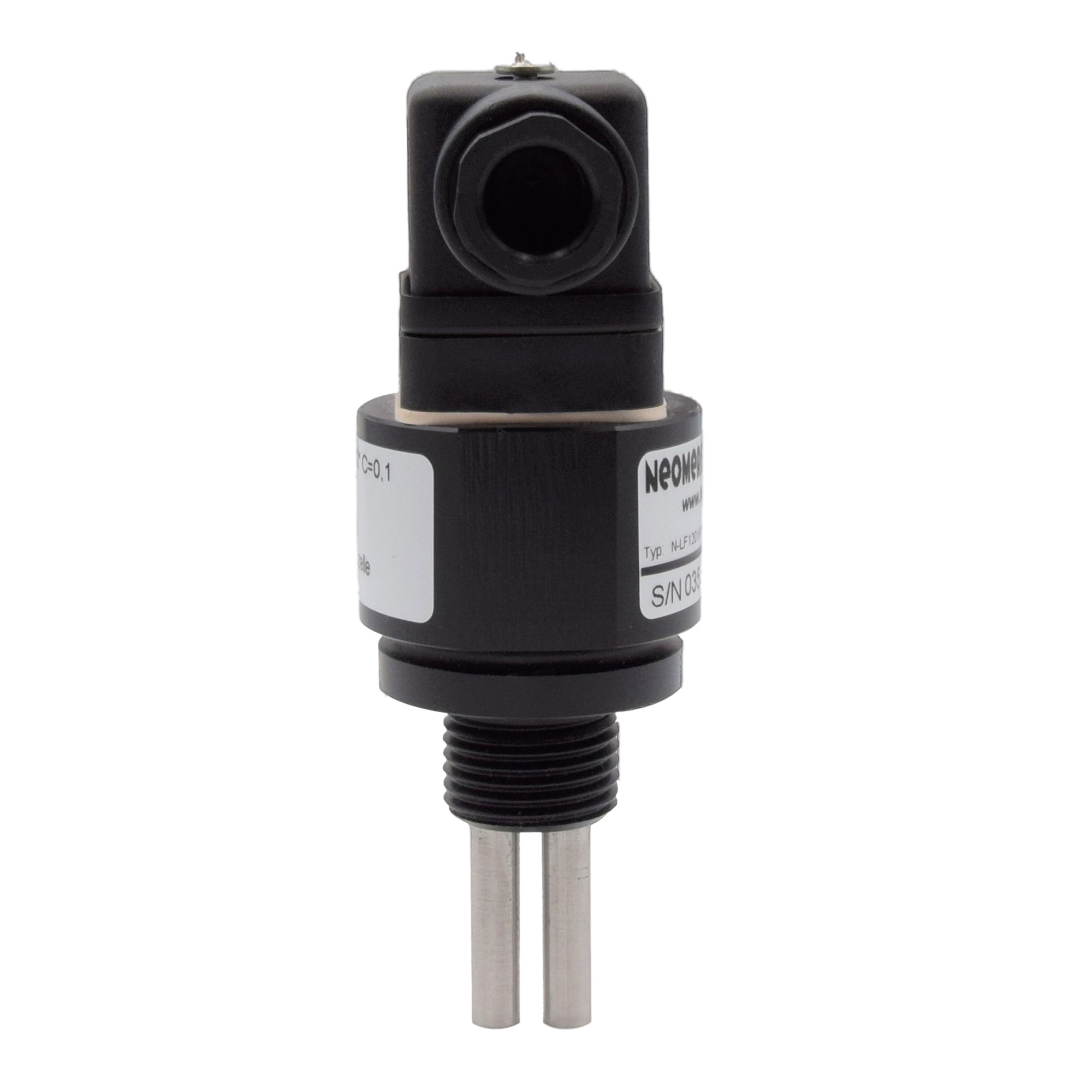

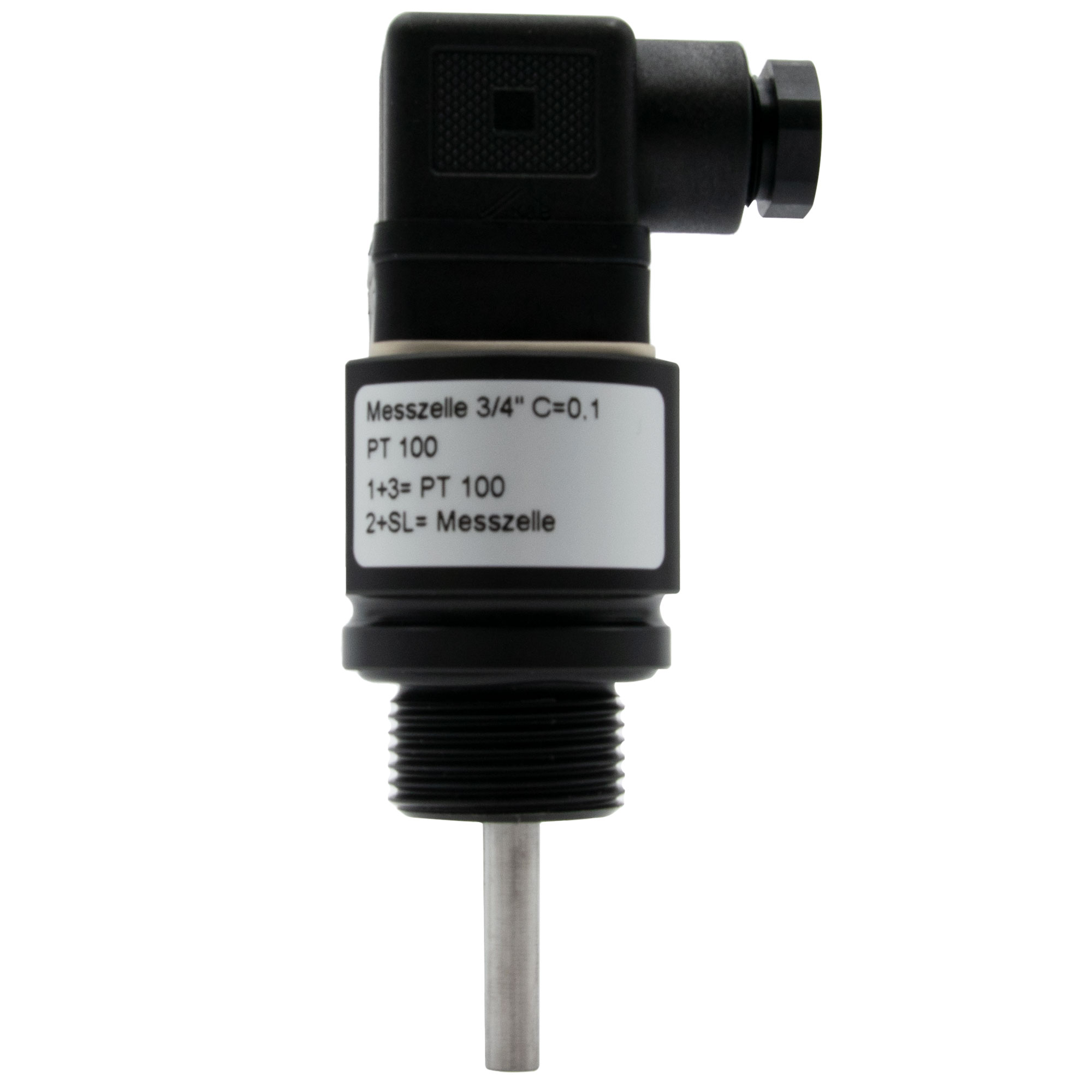

N-LF3401 conductivity measuring cell C=0.1 with PT100, 3/4 inch screw-in cell and solenoid valve connector
Product number: 880574
€117.75*
Please log in to receive your conditions.
Available, delivery time: 1-2 days
Product number:
880574
GTIN:
4260682383686
Measuring range:
0-10 / 0-20 / 0-100 / 0-200 µS/cm
Application:
for N-LF10 / N-LF100 or N-LF2000
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "N-LF3401 conductivity measuring cell C=0.1 with PT100, 3/4 inch screw-in cell and solenoid valve connector"
Technical data:
Screw-in thread: 3/4"
Material housing: POM black
Material electrodes: V4A 4571
Material O-ring: EPDM
Cell constant: C=0.1 +/- 10%.
Max. Operating pressure: 6 bar
Max. Operating temperature: 60°C
Temperature sensor: PT100
Solenoid valve connector: ST2+SL electrodes
Colour cable green/yellow
St1+St2 PT 100
Colour cable brown/white
Dimensions
| Height | 4,4 cm |
|---|---|
| Length | 13 cm |
| Width | 9 cm |
Weight
| Weight | 115 g |
|---|
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 90278930 |
