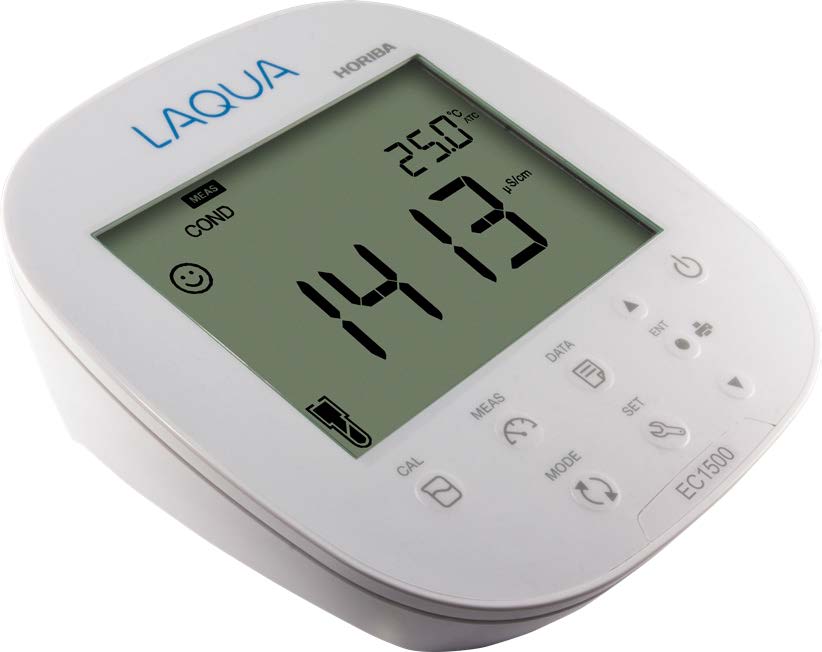

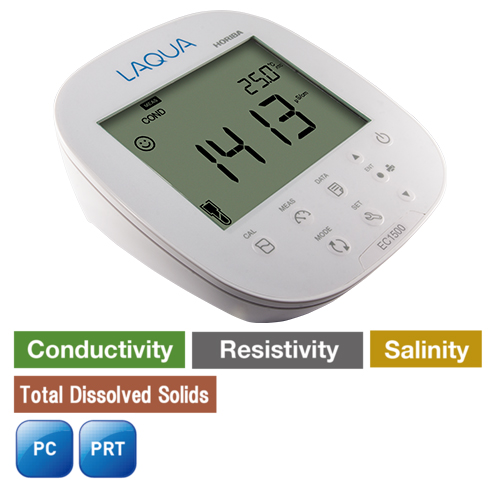

Horiba LAQUA EC1500 Single Channel Meter Starter Kit
€720.00*
Please log in to receive your conditions.
Available in 21 days, delivery time 1-2 days
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "Horiba LAQUA EC1500 Single Channel Meter Starter Kit"
Stress-free measurement - professional model
Water quality analysis is repeatedly performed in laboratories on a daily basis. Our high-end benchtop model was developed to provide simplicity with excellent on-site usability - from operation and maintenance through to troubleshooting.
Ideal for student training and routine applications. Good value for money: no bells and whistles that sounds good but is rarely used. From a renowned manufacturer whose company started with pH meters as early as 1945.
- Highly accurate measurements
- Accepts up to 5 conductivity calibration points
- Automatic calibration at 84μS/cm, 1413μS/cm, 12.88mS/cm, & 111.8mS/cm standards
- Displays average calibration factor
- Selectable cell constant
- Allows 1-point salinity calibration and temperature calibration
- Pre-programmed TDS and salinity curves for various applications
- Measuring device with integrated electrode stand
- Universal mains adapter with 6 plugs
- Operating instructions
Starter set version additionally contains:
- 9382-10D plastic body conductivity electrode, cell constant k=1.0
- 84 µS/cm, 1413 µS/cm, 12.88 mS/cm conductivity standard (1 x 250ml each)
-
with electrode holder
Other attributes
| Applications | Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Horticulture, Hydroponics, Laboratory, Schools, Water Conditioning, Wine |
|---|---|
| Brand | Horiba |
| Country of origin | JP |
| Customs tariff number | 90278930 |
| Parameter | Combined Multiparameter, Conductivity and TDS, Salinity |
| Quality | Professional |
Conductivity Range
0.00 μS – 200.0 mS
Resolution 0.01 / 0.1 / 1 μS ; 0.01 / 0.1 mS
Accuracy ±0.6% full scale, ±1.5% full scale > 18.0 mS/cm<
Reference Temperature 15.0 to 30.0 °C (adjustable)
Temperature Coefficient 0.00 to 10.00 % per °C (adjustable)
Cell Constants 0.070 to 13.00 (adjustable)
Calibration points Up to 4 (Auto) / Up to 5 (Manual) Units S/cm, S/m (Auto ranging)
Resistivity
Range 0.000 Ω•cm to 20.0 MΩ•cm
Resolution 0.5% full scale
Accuracy ±0.6% full scale, ±1.5% full scale > 1.80 MΩ•cm
Total Dissolved Solids (TDS)
Range 0 ppm – 100 ppt
Resolution 0.01 / 0.1 / 1 ppm ; 0.01 / 0.1 ppt
Accuracy ±0.1% full scale
TDS Curves EN27888, 442, NaCl, Linear (0.40 to 1.00)
Salinity
Range 0.0 to 100.0 ppt / 0.00 to 10.00 %
Resolution 0.1 ppt / 0.01%
Accuracy ±0.2% full scale
Salinity Curves NaCl / Seawater Calibration points 1 point
Temperature
Range: -30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution: 0.1 °C / °F
Accuracy: ± 0.5 °C / ± 0.9 °F
Calibration points: 1 point ( ± 10.0 °C / ± 18.0 °F range in 0.1 °C increments)
General Features
Memory: 1000 data sets
Auto Data Logging: Yes – interval from 2 to 999 seconds
Measurement modes: Auto Stable / Auto Hold / Real Time
Offset & Slope display: Yes (Average slope)
Auto Shut-Off: Yes (programmable: 1 to 30 mins.)
Electrode status: On screen display
PC / Printer Communication: Phono jack (USB / RS232)
Meter Input: 1 x BNC, 1 x phono (ATC)
Display: Large monochrome 160 segment LCD, 85 x 104 mm
Electrode Stand: Integrated
Power Requirement: AC adaptor 100 - 240V, 50 - 60Hz
Dimensions: 160 x 150 x 67 mm (meter) / 410 x 260 x 230 mm (boxed)
Weight: Meter / Boxed 720g / 3700g
Extract of our recommended electrodes
