Horiba F-72 Single Channel pH/ORP/Ion/Temperature Meter with Touchscreen

Product number: 895845

€955.00*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.

Show gross prices
(incl. VAT)

Available in 28 days, delivery time 1-2 days

Version

F-72G (meter without electrode)

F-72A-S (starter set with pH electrode and buffer solution)

F-72A-S-CFR (starter set with pH electrode, buffer solution and 21 CFR Part 11 software)

Auswahl pH Elektrode

Auswahl (mV) Redox Elektrode

Auswahl ionenselektive Elektrode

Product number: 895845

GTIN: 4260682386397

Measurement parameters: pH | ORP | Ions Selective parameters (ammonia, calcium, chloride, fluoride, potassium, nitrate) | Temperature

Our comment: The measuring electrodes suitable for the laboratory measuring instruments can be found under the product category "Spare parts and individual components"

Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

Leasing Example

20,10 € non-binding
Monthly Rate (60 Rates)
Prices excl. VAT

Further rate options by choosing the payment method Leasing

Product information "Horiba F-72 Single Channel pH/ORP/Ion/Temperature Meter with Touchscreen"

The High-End LAQUA F-72 forms the top of the laboratory instruments series and measures the parameters pH, ORP, ion, as well as temperature.

Ion selective parameters (each with his own electrode): Ammonia ion (NH3), Calcium ion (Ca2+), Chloride ion (Cl-), Fluoride ion (F-), Nitrate Ion (NO3-), Potassium ion (K+)

The auto-diagnostic function of the F- series allows the user to ensure that the instruments always provide powerful and reliable measurements. The LAQUA F-72 is fully GLP/GMP compliant and can be connected to an external printer. To ensure traceability, all results are recorded along with sample name, user ID and calibration information. The instrument offers you the proven calibration functions with automatic buffer recognition, stability display as well as the display of the electrode status (wear indicator).

We offer a comprehensive range of conductivity electrodes suitable for all types of applications and samples. Known for their stability and durability, HORIBA's electrodes provide accurate measurements under all conditions.

LAQUA's large capacitive touch screen panel:

Large 5,7" (115,2 x 86,4 mm) graphic touch- color screen
Display easy-to-understand menus for values and functions
Effortless single-touch operations- tap, flick and drag
Switch between real-time digital graphs or analogue displays during measurement with a single finger movement
Single channel display
Extensive on-screen support on the meter through an electronic user manual with colour images that can be accessed at any time and includes problem-solving instructions for calibration or measurement

Features:

Easy navigation for main instrument and electrode inspections
Mode for periodic inspections: JIS/pharmacopoeia/digital simulator
Customisable auto-hold function for calibration and measurement
Simultaneous connection to a GLP/GMP compliant and a PC
Digital memory - up to 2,000 measurement data sets can be recorded

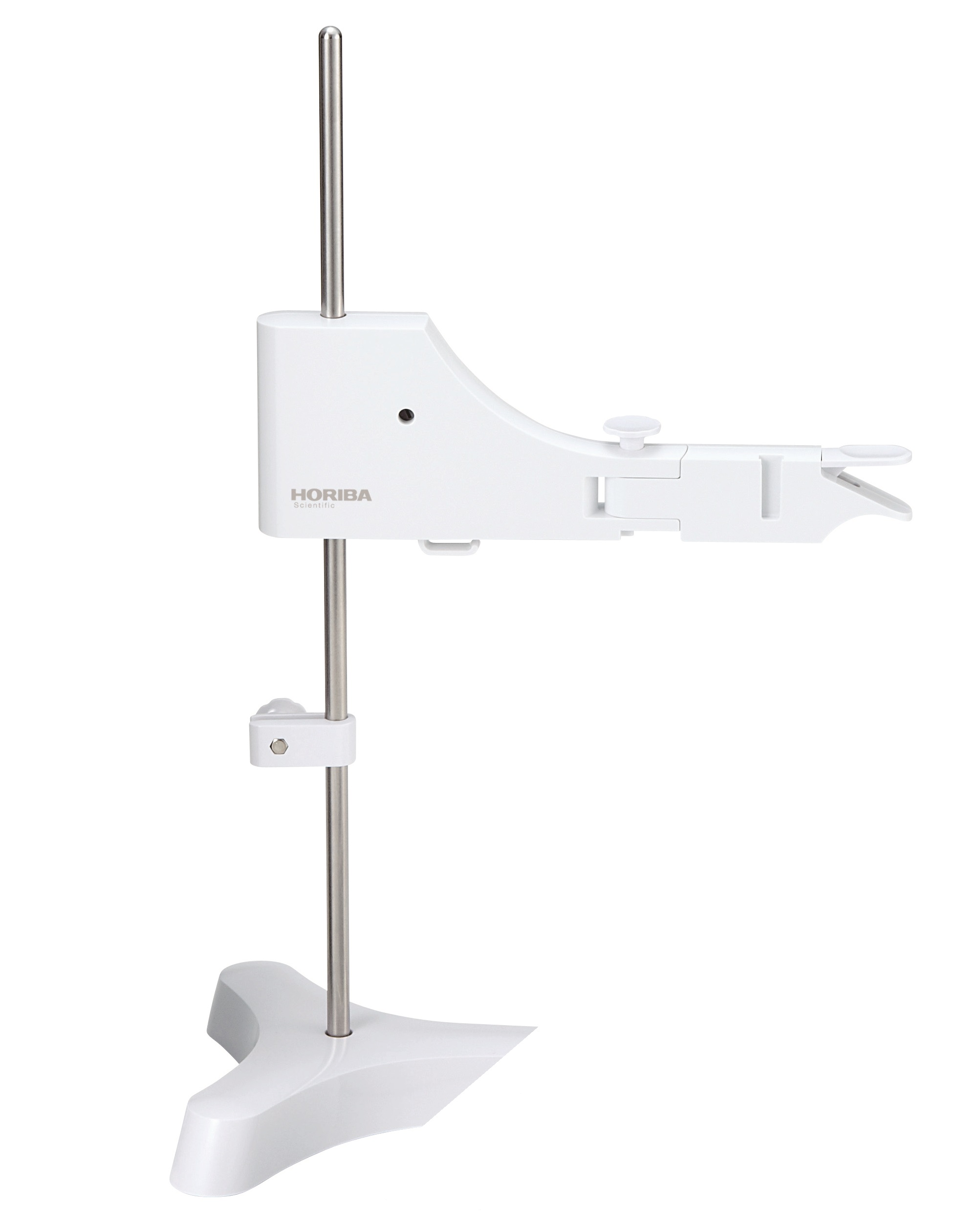

360° electrode stand which holds up to three electrodes and is height adjustable
USB PC communication and USB memory
Multilingual support (Japanese, English, Chinese, Korean)

Scope of delivery

F-72 Meter
electrode stand
protection cover
power adaptor with 6 plugs
data acquisition software in USB

Dimensions

Height	73 mm
Length	17 cm
Width	174 m

Weight

Weight	700 g

Other attributes

Applications	Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Hydroponics, Laboratory, Schools, Water Conditioning, Wine
Brand	Horiba
Country of origin	JP
Customs tariff number	90278930
Parameter	Ammonia Ion (NH3), Calcium Ion (Ca2+), Chloride Ion (Cl-), Combined Multiparameter, Fluoride Ion (F-), Nitrate Ion (NO3-), ORP, Potassium Ion (K+), Thermometers (°C), pH
Quality	Professional

Downloads:

Flyer - Brochure

Technical specifications

pH:

Measuring range: -2.000 to 20.000 pH

Resolution: 0.01 / 0.001 pH

Accuracy: ±0.001 pH

Calibration Points: Up to 5

Buffer Options: USA, NIST, NIST2, China, Custom

ORP

Measuring range: ±1999.9 mV

Resolution: 0.1 mV

Accuracy: ±0.2 mV

Ion:

Measuring range: 0.000 μg/L to 9999 g/L (mol/L)

Resolution: 4 significant digits

Accuracy: ±0.3% of full scale

Calibration Points: Up to 5

Temperature:

Measurement range: -30.0°C to 130.0℃

Resolution: 0.1℃

Accuracy: ±0.4°C

More data:

Navigation Function: Yes

Memory: 2000

Auto Data-Logging: Yes

Data Search: Yes

Custom Printing: Yes

Real Time Clock: Yes

Date / Time Stamp: Yes

Sample ID Input: Yes

Operator ID Input: Yes

Password Setting: Yes

Auto Stable / Auto Hold: Yes

Offset / Slope Display: Yes (independant acid and alkaline slopes depending on calibration)

Calibration Alarm Limit: Yes

Electrode Status: On screen display

Diagnostic Messages: Yes

Display: Touch screen color graphic LCD

Languages: English, Japanese, Chinese, Korean, Vietnamese

Inputs: BNC, phono, DC socket

Outputs: USB, RS232C, analopg output

Power Requirements: AC adaptor 100 to 240V, 50/60 Hz

Electrode Stand: Stand alone

Weight: 700g

Dimensions: 170 x 174 x 73mm

Suitable laboratory electrodes

Horiba 9625-20D Plastic body, refillable pH electrode, cable: 2m, waterproof

Product number: 895859

This refillable pH electrode with plastic housing and integrated temperature sensor is recommended for general use. Cable length: 2 metres

€290.00*

Details

Horiba 9625-30D Plastic body, refillable pH electrode, cable: 3m, waterproof

Product number: 895860

This refillable pH electrode with plastic housing and integrated temperature sensor is recommended for general use. Cable length: 3 metres

€355.00*

Details

Horiba 9632-10D Refillable pH electrode with plastic housing for strongly alkaline samples

Product number: 895863

This plastic-body, refillable pH electrode with integrated temperature sensor has higher resistance and longer stability than conventional electrodes. The alkali-resistant glass membrane is suitable for strong alkali samples such as plating solutions.

€405.00*

Details

Horiba 6261-10C Glass‐body, refillable Flat Surface pH electrode (petri dishes, gelatinous samples, meat, cheese, skin, paper etc.)

Product number: 895867

The liquid junction of this glass-body, refillable pH electrode is located on the flat pH sensing membrane. Perfect for measuring samples in shallow containers (e.g., petri dishes) and gelatinous samples (e.g., nutrient agar). For pH measurement of meat, skin, leather, paper, leaves and cloth.

€350.00*

Details

Horiba 9480-10C Glass body, refillable Long ToupH pH electrode. 8 x 283mm

Product number: 895871

This refillable pH electrode with integrated temperature sensor is ideal for testing samples in large containers and long test tubes (e.g., microbial culture fluids) due to its long, thin, glass-body. Electrode: 251mm length, 7mm diameterConstructed with responsive glass that is 10x stronger than JIS standardsWaterproof, Pb-free glass

€290.00*

Details

Horiba 9481-10C Glass body, refillable Movable sleeves ToupH pH electrode. 8 x 283mm

Product number: 895872

This glass-body, refillable pH electrode gives stable readings even in highly viscous samples and non-aqueous solutions (e.g., solvents, cosmetics, paints). The liquid junction is designed with a movable sleeve that prevents clogging. Easy to clean and provides quick stable readingsWaterproof, Pb-free glass

€365.00*

Details

Horiba 2060A-10T single connection, half-cell reference electrode

Product number: 895876

Suitable for a wide range of pH measurements since the resistance of the liquid junciton is small.

€150.00*

Details

Horiba 2565A-10T double connection, sleeve type half cell reference electrode

Product number: 895877

Suitable for measurements of liquid other than normal aqueous solutions, such as suspensions, emulsions, paste, and non-aqueous solutions. When the potassium chloride solution of the internal solution reacts with the sample, measurements can be stably carried out by filling the sample or any other chloride solution in the external jacket. The replacement of the internal solution and the cleaning of the liquid junction can be carried out easily.

€190.00*

Details
