Testomat® 808
Product number:
100650
Operating pressure:
1 - 4 bar
|
Performance/execution:
230 V/50-60 HZ
The Testomat® 808 is a compact analyzer for the online measurement of water hardness according to the principle of " limit value monitoring by color change ". The Testomat® style="letter-spacing: 0px;"> 808 is a combination of the latest technologies based upon decades of international Testomat® experience.Applications of continuous residual hardness monitoring are for example:
Reverse osmosis plants
Boiler feed water supply
Soft water for commercial puposes
Pure water systems
Performance profile:Limit value indication (not exceeded or exceeded: green / red LED)
Modern indicator pump system
Automatic measuring process with low water consumption
Direct error and indicator quantity indication
Internal and external flushing of the measuring chamber by manual control
Control of an external rinsing valve
Three potential-free relays for:
External rinsing valve control
Limit value evaluation
External control and / or alarm processing
Safety check for 72 hours operation without supervision

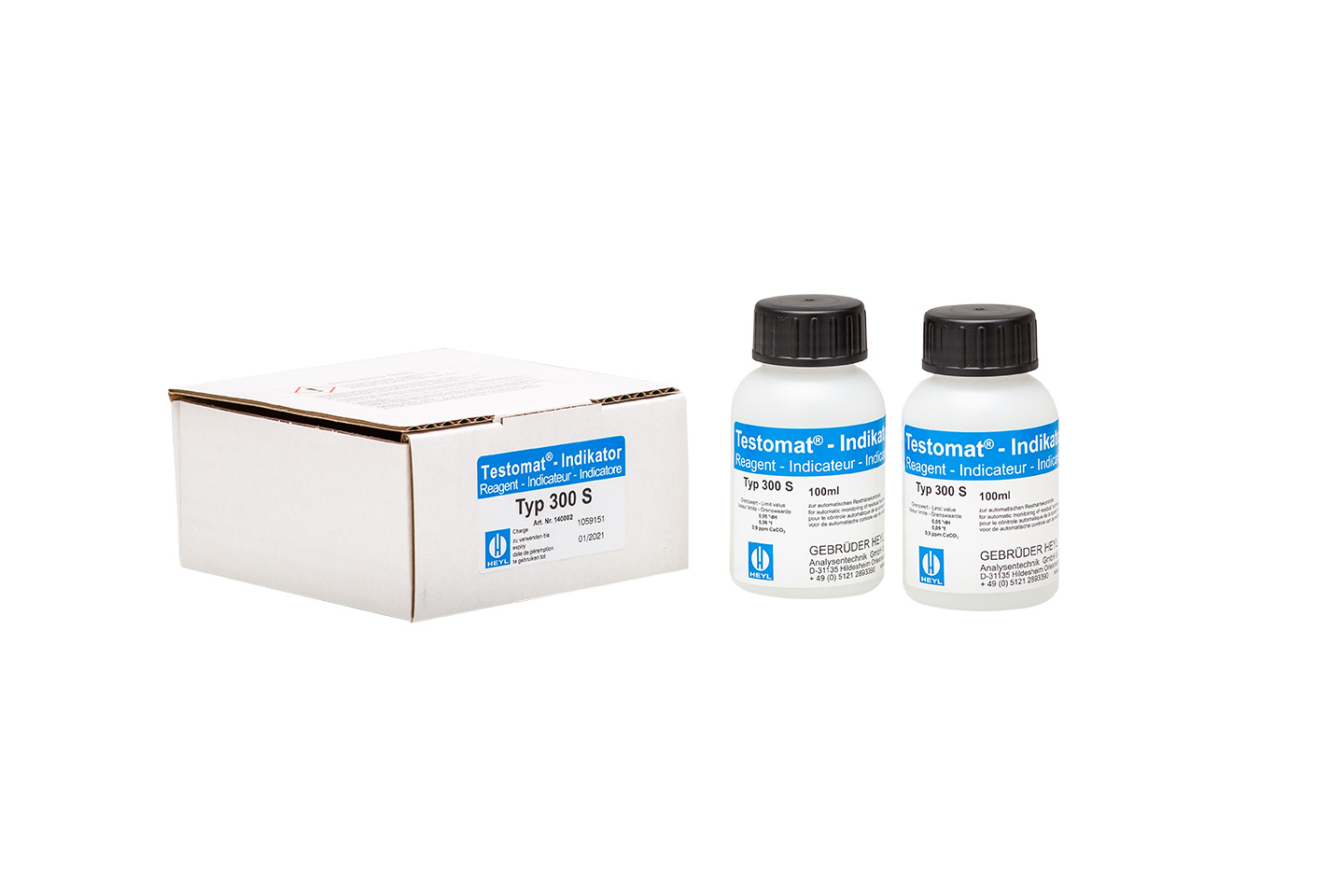

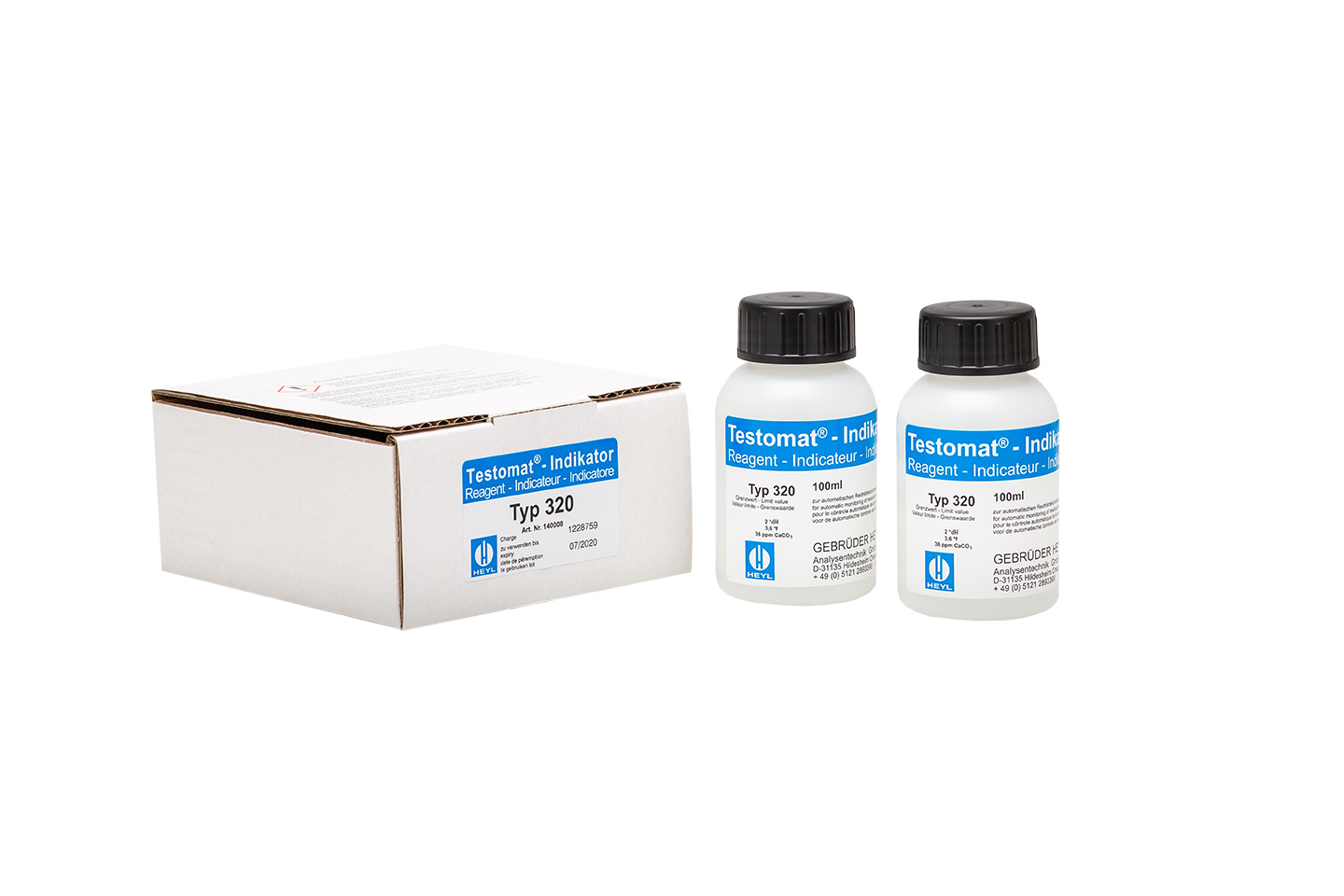

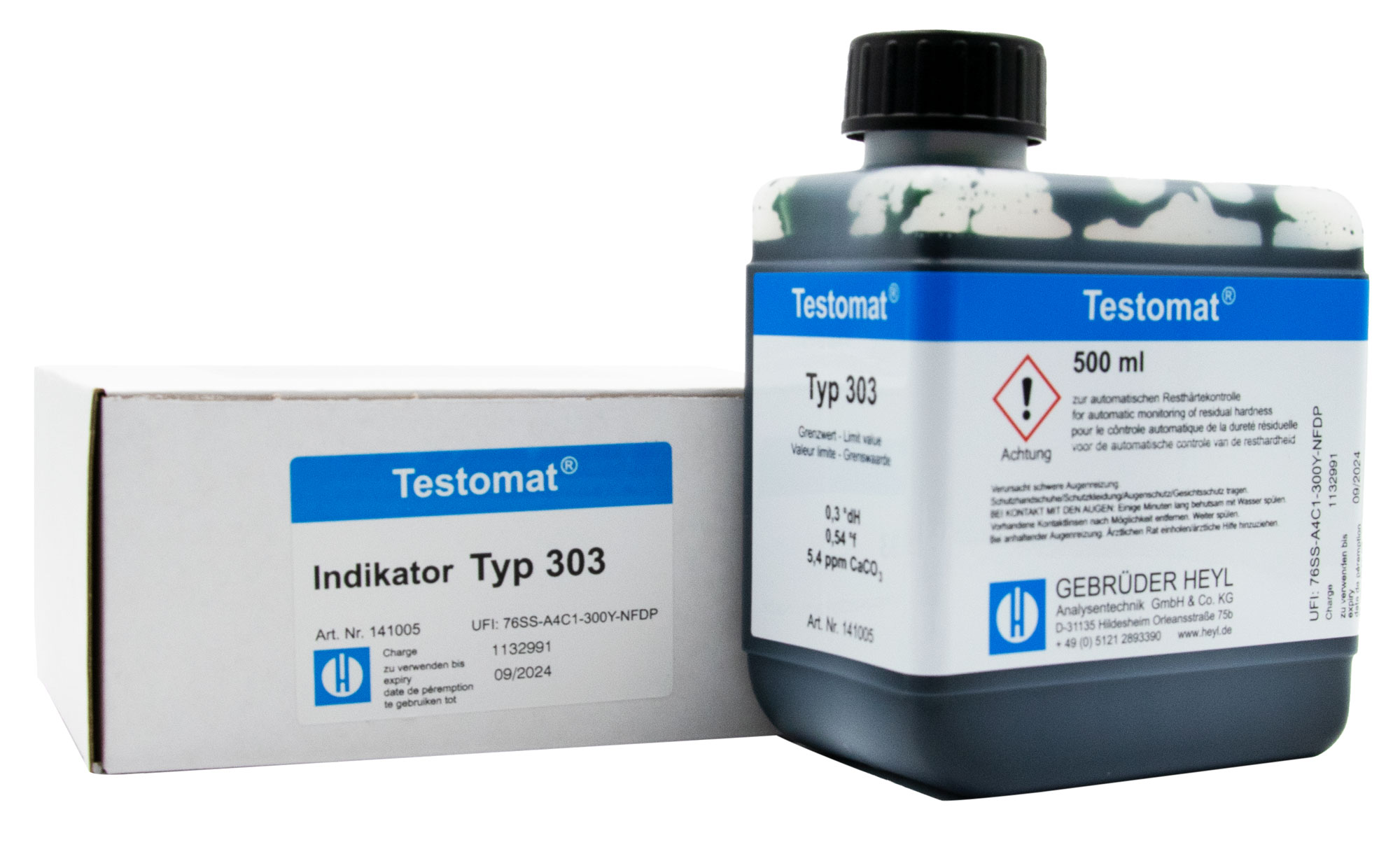

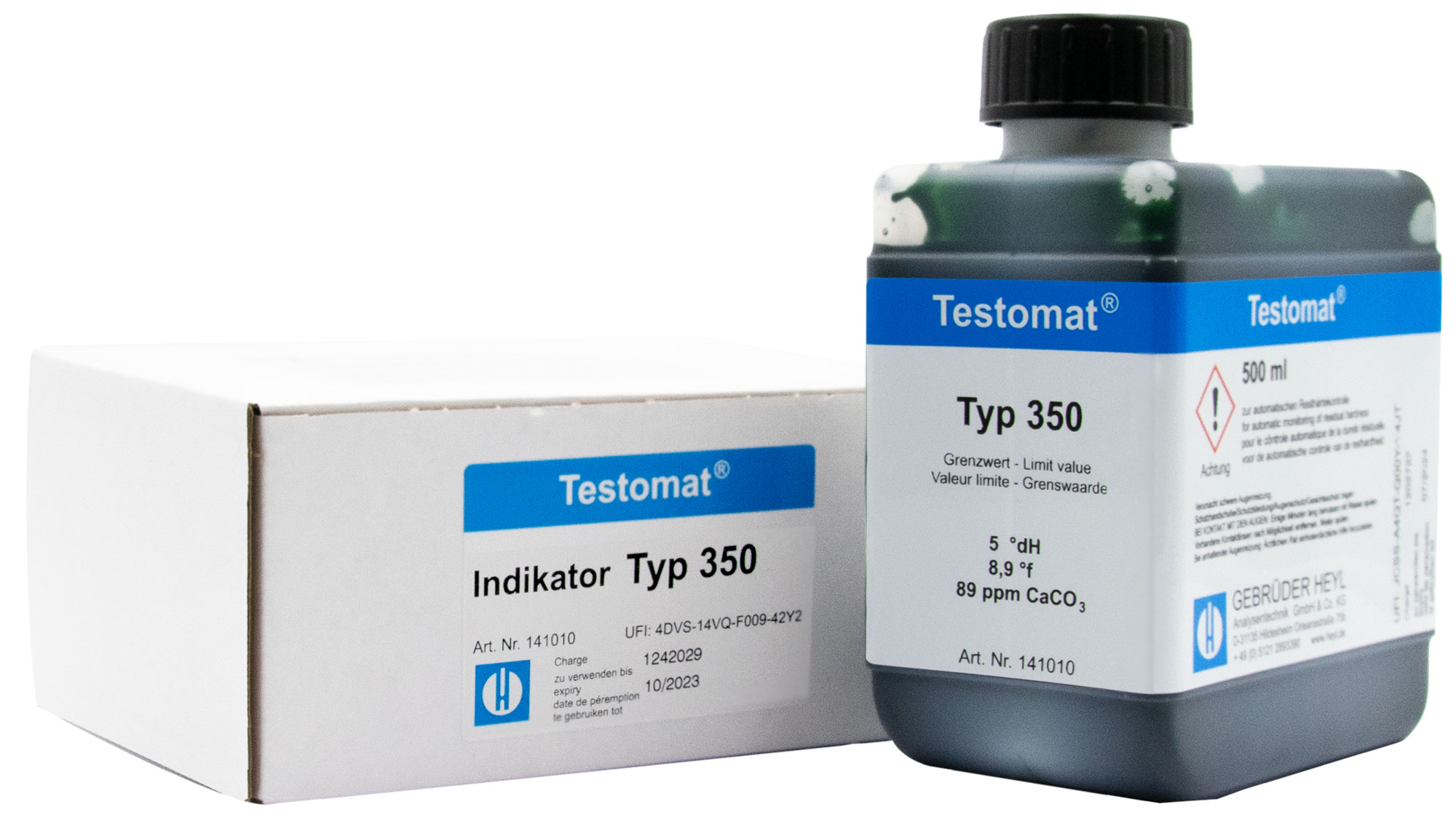

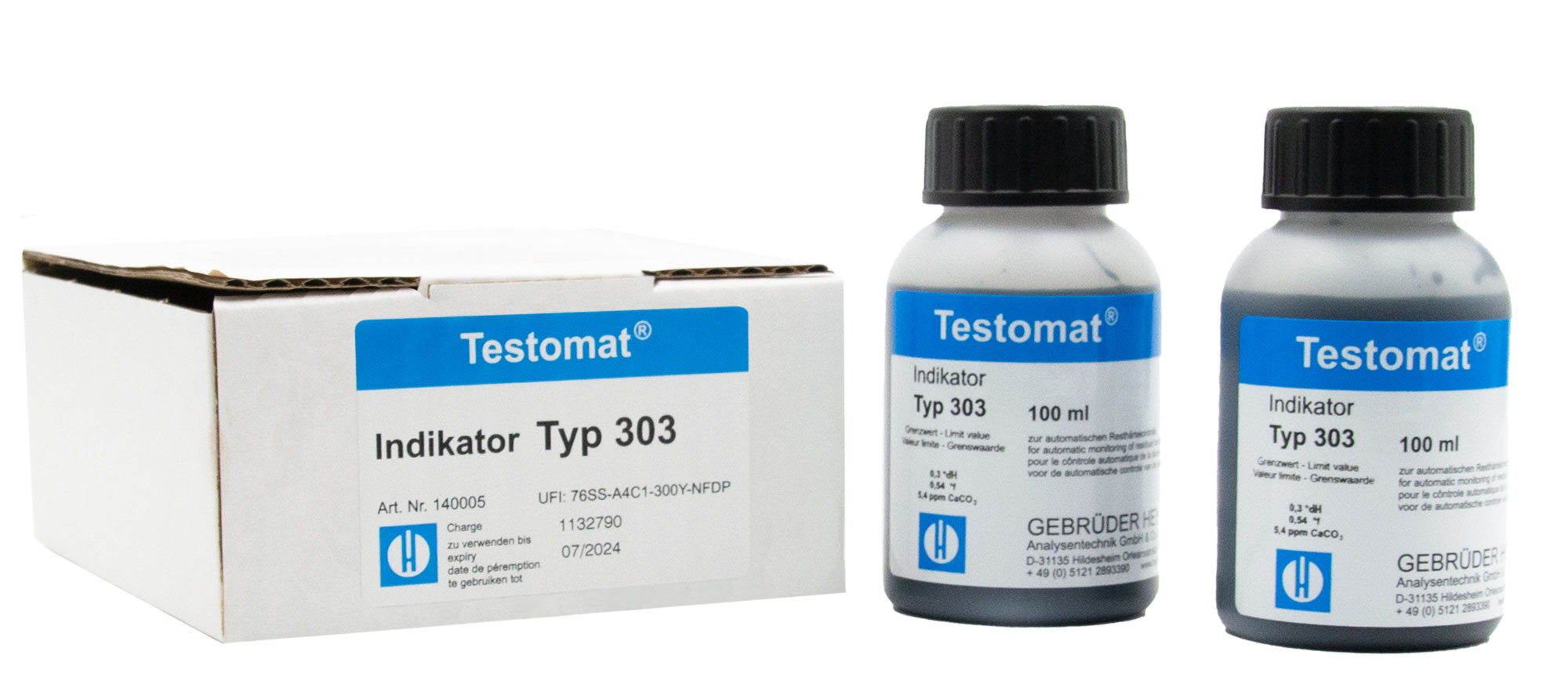

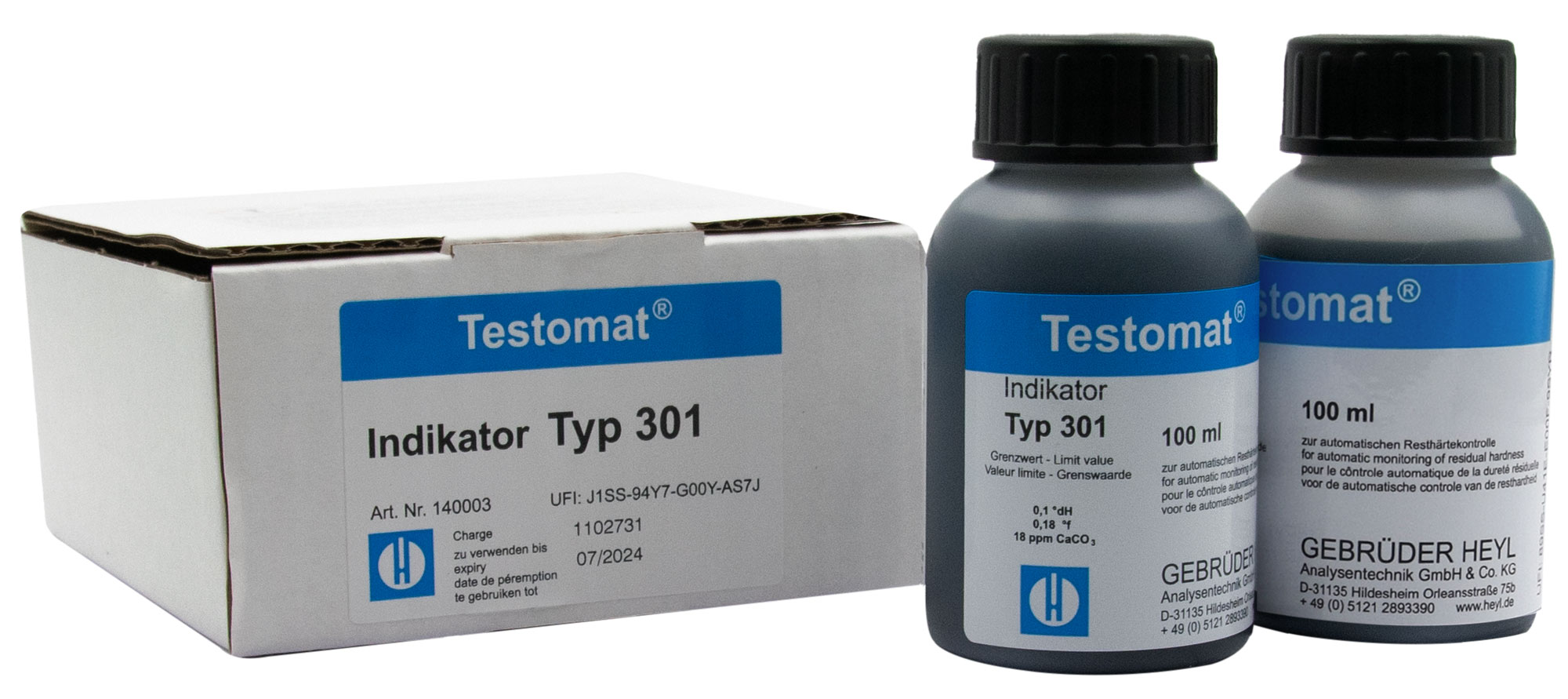

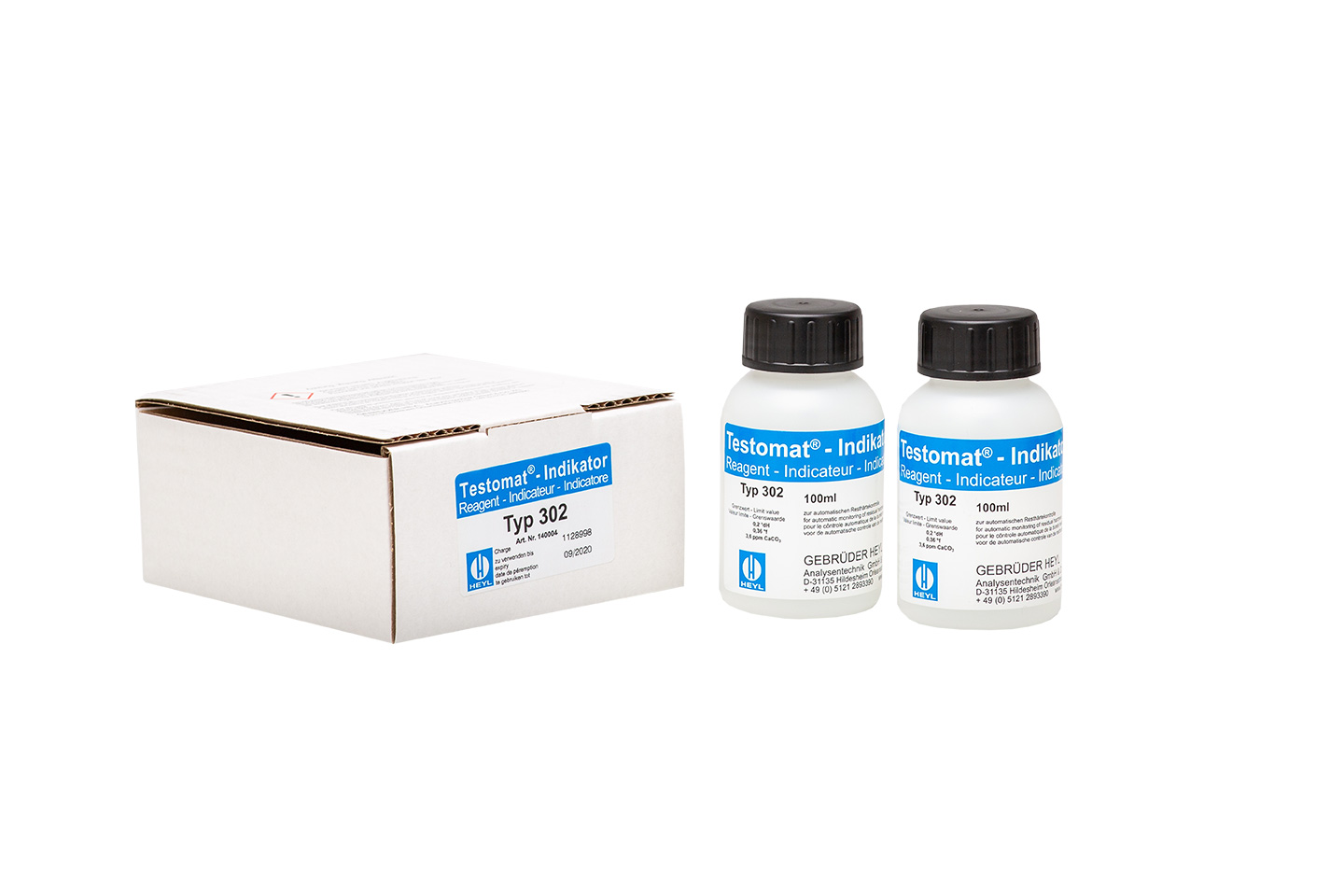

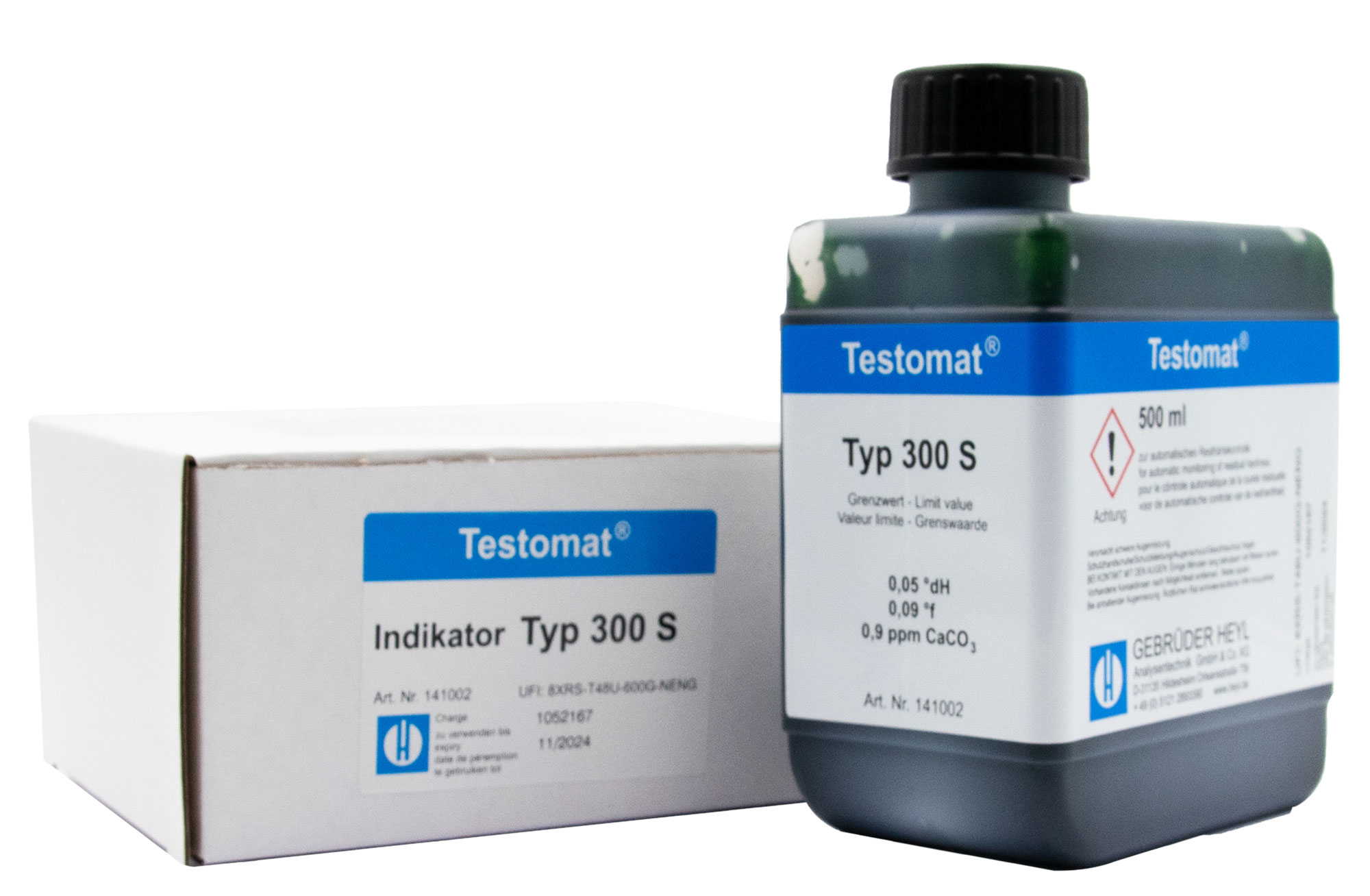

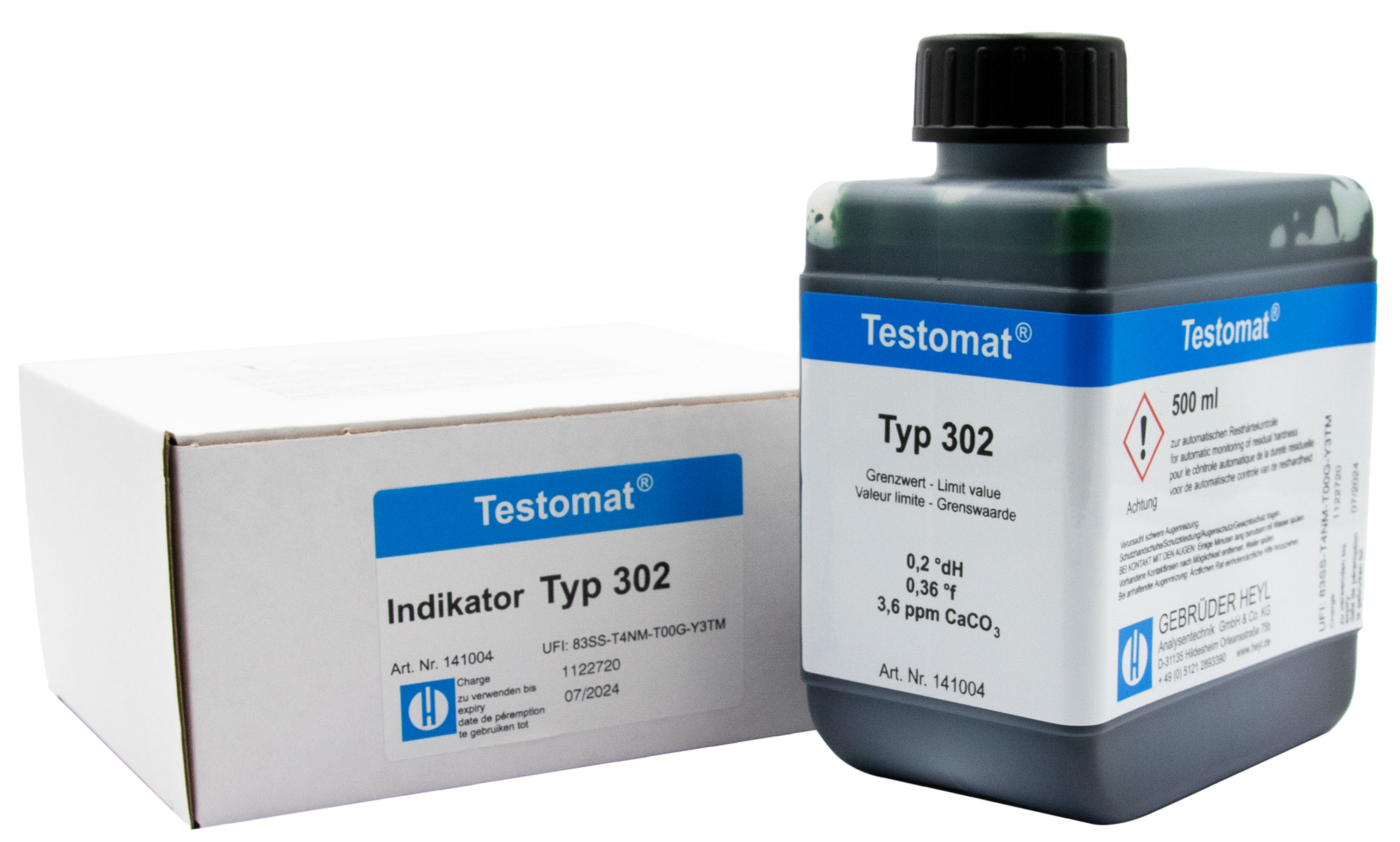

Indicator quantities: 100 and 500 ml bottles
4 - 20 mA interface for defined status and error messages
RS 232 interface for firmware updates
€2,702.40*
Tip
Testomat® EVO (Successor Testomat® ECO)
Product number:
100704
Replacement of:
100122; 100112; 100117
Performance/execution:
100 - 240 VAC / 100 - 353 VDC
The Testomat® ECO / EVO automatically determines the water hardness by means of titration. The device is suitable for controlling the water quality of water treatment plants, drinking water systems, industrial boilers and for monitoring process water. Approved for boiler houses | component identification no.: TÜV. WÜH. 21-025 | VdTÜV bulletin water monitoring device 100 and UL-TÜV certified (only version with wide-range power supply unit).The Testomat® style="letter-spacing: 0px;"> EVO TH convinces with new functionalities:Optical water detection when filling the measuring chamber
BOB operation (operation without constant supervision)Import and export of settings (basic programming) with selectable file nameLogging of measurement data and messages / alarms using an integrated SD or optional SDHC card (2GByte)
Firmware update via SD card
LCD graphic display
Multilingual menu with easy switching (internal programming is retained)
Integrated self-test with continuous monitoring
External clear / acknowledge input
Free programmable password
Automatic bleeding of the indicator line
Doors can be changed individually
Range monitoring (fall below limit value1 / exceed limit value 2)
Permitted number of lack of water, freely programmable (for systems with temporarily low water pressure)[#mspacer#]Performance profile:High-precision titration using a piston dosing pump
Analogue output 0/4 - 20 mA
Serial RS232 interface for transfer of measurement data and messages/alarmsProgrammable hardness unit in ° dH, ° f, ppm CaCO3, mmol / l
2 independent limits with adjustable switching functions as well as switching option in accordance with an adjustable number of negativeanalyzes
Analysis initiation:
automatic interval operation (0-99 minutes)
depending on quantity via contact water meter
Indicator quantities: 100 und 500 ml bottles
The Testomat® EVO TH is supplied without a power switch. This is done to comply with the DIN EN 61010-1 safety standard for measuring, control and laboratory equipment. Of course, an external mains switch will be made available to you as a customer for purchase. You can order this from us as a disconnector under article no. 850925, "external cam switch with protection class IP65".
€5,018.60*
